 Clip-on EMI gaskets heavy duty夾式EMI墊圈重載型

Clip-on shield is a flexible rubber tube with an all metal cladding. The clip-on range is extremely easy to mount and provide a solid mechanical attachment of the EMI shielding gasket without the use of adhesive’s.
夾式屏蔽墊圈是一個柔軟的橡膠管帶一個全金屬包層。該夾式系列是極其容易裝配的，提供一個固體的機械EMI屏蔽墊圈附件而沒有使用黏合劑的。
The metal cladding is corrosion resistant and guarantees both excellent EMI shielding and electrical conductivity. The hollow rubber provides low closure force and good spring properties, making it ideal to use as EMI shielding, grounding and static discharge (ESD) or as alternative for finger strips.
金屬包層是抗腐蝕的，確保EMI屏蔽和電傳導兩者都優良的。凹的橡膠提供了低的閉合力和好的彈出特性，使得它是理想的用做EMI屏蔽接地和靜電放電（ESD）或作為二選一的用于指型帶。
The clip-on range can make bending up to 90 degree and is suited to clip on 0.5 till 3 mm thick plate material and can be delivered on continuous lengths or small pre-cutted pieces.
夾子的范圍能被折彎到90度，適合于夾住0.5到3mm厚板材料，交貨時可以是連續的長度或小的按規格裁切的單件。

Applications應用

1. EMI / EMC shielding屏蔽
2. Static discharge (ESD) / grounding 靜電放電（ESD）/ 接地
3. Electrical connections 電連接
4. Doors  / lids 門/蓋
5. Medical / Military 醫學/軍用
6. General electronics通用的電子設備

Advantages優點

1. Non toxic 無毒
2. Continuous length (up to 10 metre) 連續的長度（可達10米）
3. High spring / compression range 高的彈出/壓縮范圍
4. Extreme high shielding performance 極其高的屏蔽性能
5. Superb electrical conductivity 極好的電導率
6. Easy to mount容易安裝

Tech data技術數據

1. Shielding effectiveness屏蔽效率  >100 dB  (10 KHz - 22 GHz)
2. Electrical resistance 0.004 Ohms / square cm 電阻抗0.004 Ohms/cm2
3. Temp. range -40 till +100 degree celcius 溫度范圍：-40~1000C

Standard delivered on 2 meter length pieces, with tinned copper (steel) cladding 。other claddings, shapes and lengths on request
標準交貨是每件2米長，帶鍍錫銅（鋼）覆層。其它的覆層、形狀和長度根據需求。

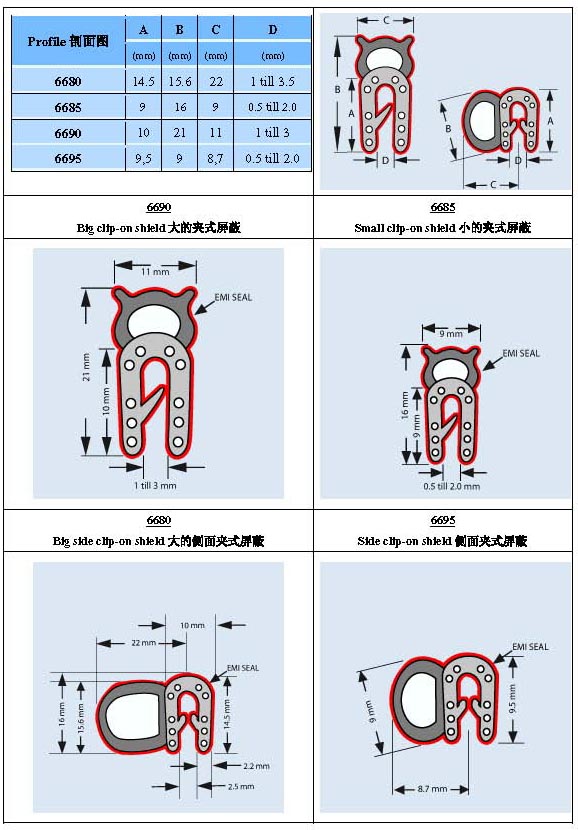

Example舉例
Please indicate the profile number followed by the length in meters.
請指出剖面圖號碼，長度的表示是米。
